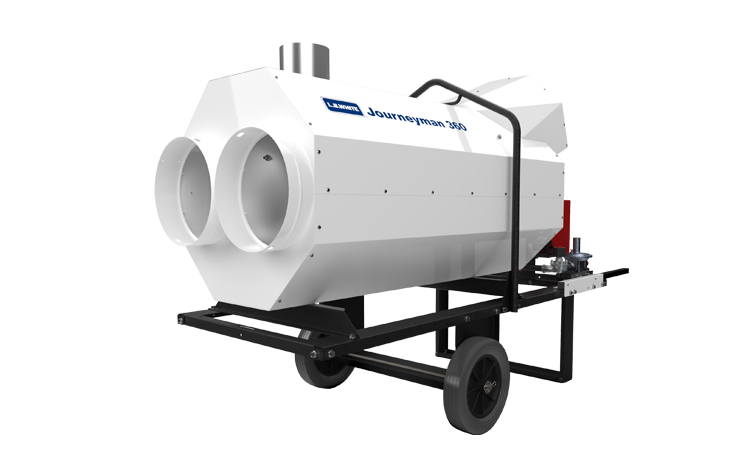

JOURNEYMAN® 360 DF INDIRECT-FIRED PORTABLE HEATER
BTU/HR: 360,000
The Journeyman® 360 DF indirect fired portable heater provides trimmed and simplified raw heat to your worksite at a very competitive price. Indirect fired technology exhausts combustion outside of heated environment while providing the ability to duct heat up to 25 feet. Operates from propane gas or natural gas, indoor/outdoor rated, and produces 360,000 BTU per hour. Manufactured in Wisconsin. Buy this certified portable heater with confidence – backed by a 2-year warranty and lifetime of technical support.
FEATURES
- 360,000 btu/hr
- 2,000 CFM
- Dual Fuel (LPG/NG)
SPECS
| JOURNEYMAN | 360 DF |
|---|---|
| BTU/HR Rating | 360,000 |
| Blower Fan Output (CFM) | 2,000 |
| Fuel Type | LP/NG |
| Fuel Consumption Max | LP 16.7 lb/hr, NG 230 cu. ft./hr |
| Inlet Gas Pressure min.max LP/NG (in. W.C.) | 7/13.5 |
| Burner Type | Riello |
| Outlet Static Pressure (in. W.C.) | 0.7 (two 12ā€¯ outlets) / 0.5 (one 16ā€¯ outlet) |
| Motor Horsepower | 1/2 |
| Electrical Supply (volts/hz/phase) | 120/60/1 |
| Amps (start/continuous) | 8 |
| L x W x H (in.) | 71.75 x 33.5 x 50.5 |
| Ship Weight (lbs) | 445 |
| Outlet Duct Diameter (in.) | 12ā€¯ (for two ducts - S) / 16ā€¯ (for one duct - O) |
| Outlet Duct Connections | 2 |
| Outlet Duct Max Length (ft.) | 25 |
| Air Recirculation Inlet Dia. (in.) | n/a |
| U.S./Canadian Certification | Yes |
ACCESSORIES
Duct 12” x 25’ L
Part #: 30052
Sold separately.
Air Recirculation Kit 16” dia. X 25’
Part #: 30076
Sold separately.

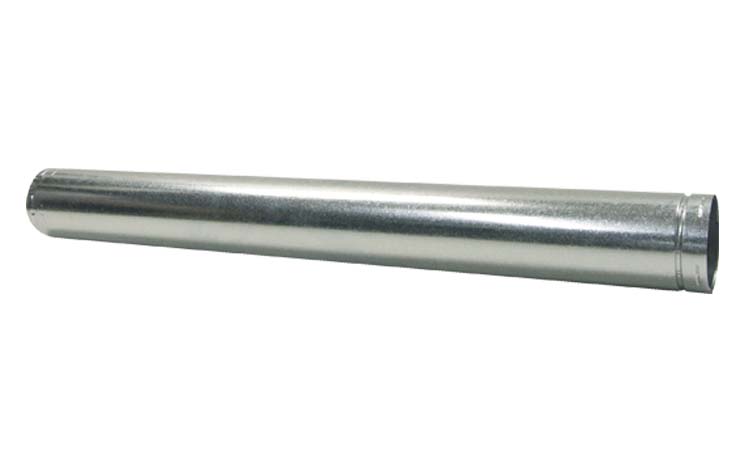

Exhaust Pipe Extension 6" dia.
Part #: 30161
Sold separately.

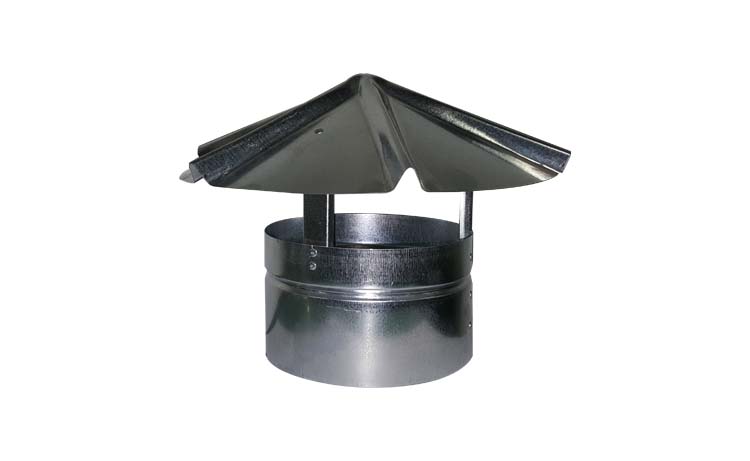

Rain Cap Part #: 30162
Sold separately.
Regulator Part #: 25141
Sold separately.

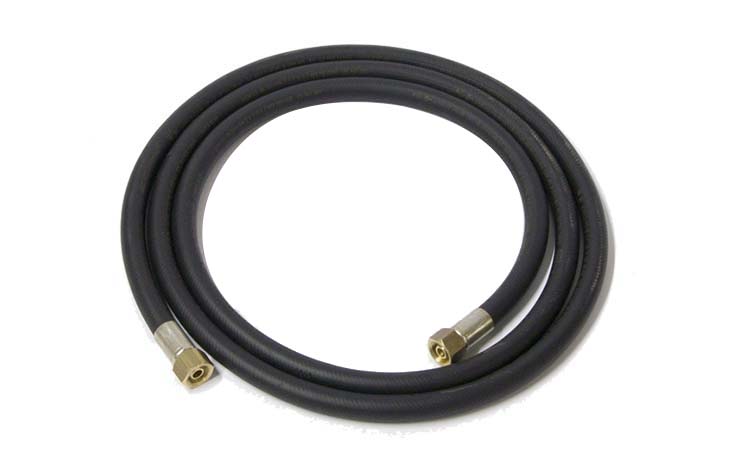

Hose 3/4” x 15 ft.
Part #: 25965
Sold separately.

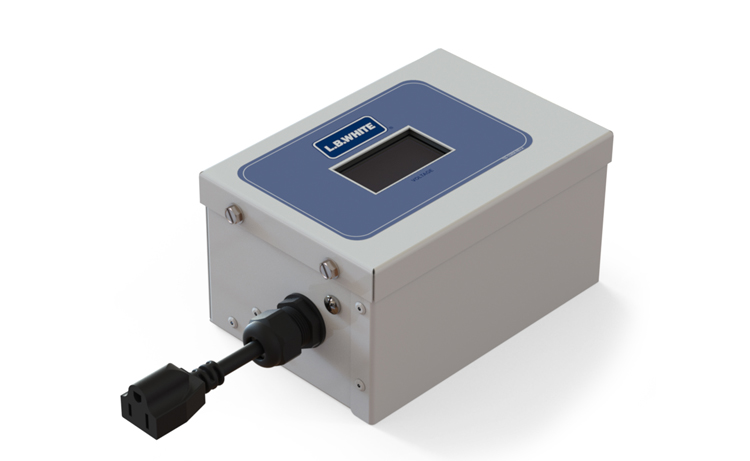

Voltmeter Box Part #: 133663
Sold separately.
Forklift Pocket Kit Part #: 133611
Sold separately.
Additional parts & accessories are available here.
OWNERS MANUAL
Schematics, setup instructions, and more for Journeyman® 36
SERVICE PARTS
Identify the replacement parts you may need for Journeyman® 360 DF Direct-Fired Portable Heaters.
