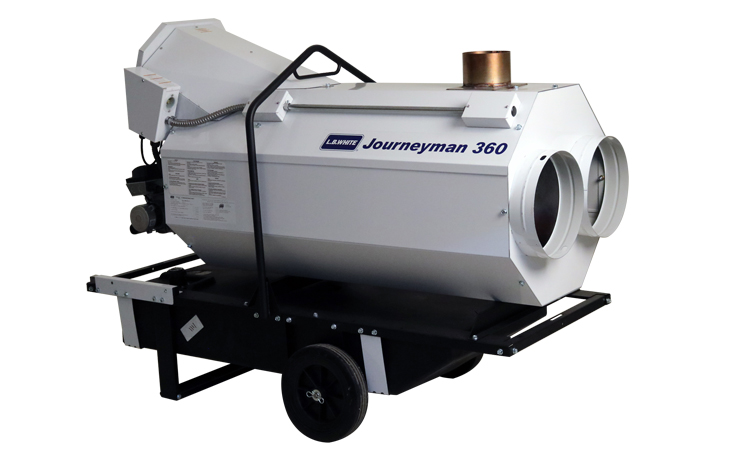

JOURNEYMAN® 360 OIL INDIRECT-FIRED PORTABLE HEATER
BTU/HR: 360,000
The Journeyman® 360 Oil indirect fired portable heater provides trimmed and simplified raw heat to your worksite at a very competitive price. Indirect fired technology exhausts combustion outside of heated environment while providing the ability to duct heat up to 25 feet. Operates from diesel #1 or #2, indoor/outdoor rated, and produces 360,000 BTU per hour. Onboard 40-gallon fuel tank. Equipped to move manually. Manufactured in Wisconsin. Buy this certified portable heater with confidence – L.B. White backs your purchase with a 2-year warranty and free lifetime of technical support.
FEATURES
- 360,000 btu/hr
- 2,000 CFM
- Diesel #1 and #2
SPECS
| JOURNEYMAN | 360 OIL |
|---|---|
| BTU/HR Rating | 360,000 |
| Blower Fan Output (CFM) | 2,000 |
| Fuel Type | DIESEL #1 OR #2 |
| Fuel Consumption Max | 2.6 |
| Burner Type | Beckett |
| Outlet Static Pressure (in. W.C.) | 0.7 (two 12ā€¯ outlets) / 0.5 (one 16ā€¯ outlet) |
| Motor Horsepower | 1/2 |
| Electrical Supply (volts/hz/phase) | 120/60/1 |
| Amps (start/continuous) | 8 |
| L x W x H (in.) | 71.75 x 33.5 x 50.5 |
| Ship Weight (lbs) | 457 |
| Outlet Duct Diameter (in.) | 12ā€¯ (for two ducts - S) / 16ā€¯ (for one duct - O) |
| Outlet Duct Connections | 2 |
| Outlet Duct Max Length (ft.) | 25 |
| Air Recirculation Inlet Dia. (in.) | n/a |
| U.S./Canadian Certification | Yes |
ACCESSORIES
Duct 12” x 25’ L
Part #: 30052
Sold separately.
Air Recirculation Kit 16” dia. X 25’
Part #: 30076
Sold separately.
Exhaust Pipe Extension 6" dia.
Part #: 30161
Sold separately.
Rain Cap Part #: 30162
Sold separately.
Regulator Part #: 25141
Sold separately.
Hose 3/4” x 15 ft.
Part #: 25965
Sold separately.
Voltmeter Box Part #: 133663
Sold separately.
Forklift Pocket Kit Part #: 133611
Sold separately.
Additional parts & accessories are available here.
OWNERS MANUAL
Schematics, setup instructions, and more for Journeyman® 36
SERVICE PARTS
Identify the replacement parts you may need for Journeyman® 360 OIL Direct-Fired Portable Heaters.
